Kovové vývodky radu HSK-M-EMV-Ex
HSK-M-EMV-Ex
EMV - štandardná káblová priechodka
HSK-M-PVDF-EMV-Ex
Štandardná káblová priechodka kompatibilná s EMV pre oblasťi s chemickými a vysokými teplotami
Poznámky:

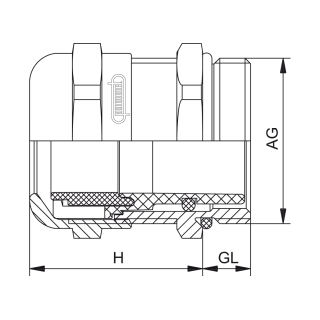

- SW (mm) - veľkosť použiteľnosti vidlicového kľúča
| AG | Ø (mm) | GL (mm) | H (mm) | SW (mm) | HSK-M-EMV-Ex -20°C -95°C | HSK-M-EMV-Ex -60°C -95°C |
|---|---|---|---|---|---|---|
| M 12 x 1,5 | 3 - 6,5 | 6,5 | 19 | 14 | 1.616.1200.50 | 1.646.1200.50 |
| M 12 x 1,5 | 2 - 5 | 6,5 | 19 | 14 | 1.616.1200.51 | 1.646.1200.51 |
| M 16 x 1,5 | 6 - 10 | 6 | 22 | 20 | 1.616.1600.50 | 1.646.1600.50 |
| M 16 x 1,5 | 3 - 7 | 6 | 22 | 20 | 1.616.1600.51 | 1.646.1600.51 |
| M 20 x 1,5 | 10 - 14 | 6 | 23 | 24 | 1.616.2000.50 | 1.646.2000.50 |
| M 20 x 1,5 | 7 - 12 | 6 | 23 | 24 | 1.616.2000.51 | 1.646.2000.51 |
| M 25 x 1,5 | 14 - 18 | 7 | 24 | 30 | 1.616.2500.50 | 1.646.2500.50 |
| M 25 x 1,5 | 10 - 16 | 7 | 24 | 30 | 1.616.2500.51 | 1.646.2500.51 |
| M 32 x 1,5 | 20 - 25 | 8 | 31 | 40 | 1.616.3200.50 | 1.646.3200.50 |
| M 32 x 1,5 | 13 - 20 | 8 | 31 | 40 | 1.616.3200.51 | 1.646.3200.51 |
| M 40 x 1,5 | 22 - 32 | 8 | 37 | 50 | 1.616.4000.50 | 1.646.4000.50 |
| M 40 x 1,5 | 20 - 26 | 8 | 37 | 50 | 1.616.4000.51 | 1.646.4000.51 |
| M 50 x 1,5 | 32 - 38 | 9 | 37 | 57 | 1.616.5000.50 | 1.646.5000.50 |
| M 50 x 1,5 | 25 - 31 | 9 | 37 | 57 | 1.616.5000.51 | 1.646.5000.51 |
| M 63 x 1,5 | 37 - 44 | 10 | 38 | 64 / 68 | 1.616.6300.50 | 1.646.6300.50 |
| M 63 x 1,5 | 29 - 35 | 10 | 38 | 64 / 68 | 1.616.6300.51 | 1.646.6300.51 |
| AG | Ø (mm) | GL (mm) | H (mm) | SW (mm) | HSK-M-EMV-Ex -20°C -95°C | HSK-M-EMV-Ex -60°C -95°C | HSK-M-EMV-PVDF-Ex -20°C -130°C |
|---|---|---|---|---|---|---|---|
| PG 7 | 3 - 6,5 | 5 | 19 | 14 | 1.616.0700.01 | 1.646.0700.01 | 1.666.0700.01 |
| PG 7 | 2 - 5 | 5 | 19 | 14 | 1.616.0700.15 | 1.646.0700.15 | 1.666.0700.15 |
| PG 9 | 4 - 8 | 6 | 21 | 17 | 1.616.0900.01 | 1.646.0900.01 | 1.666.0900.01 |
| PG 9 | 2 - 6 | 6 | 21 | 17 | 1.616.0900.15 | 1.646.0900.15 | 1.666.0900.15 |
| PG 11 | 6 - 10 | 6 | 22 | 20 | 1.616.1100.01 | 1.646.1100.01 | 1.666.1100.01 |
| PG 11 | 3 - 7 | 6 | 22 | 20 | 1.616.1100.15 | 1.646.1100.15 | 1.666.1100.15 |
| PG 13,5 | 6 - 12 | 6,5 | 24 | 22 | 1.616.1300.01 | 1.646.1300.01 | 1.666.1300.01 |
| PG 13,5 | 5 - 9 | 6,5 | 24 | 22 | 1.616.1300.15 | 1.646.1300.15 | 1.666.1300.15 |
| PG 16 | 10 - 14 | 6,5 | 23 | 24 | 1.616.1600.01 | 1.646.1600.01 | 1.666.1600.01 |
| PG 16 | 7 - 12 | 6,5 | 23 | 24 | 1.616.1600.15 | 1.646.1600.15 | 1.666.1600.15 |
| PG 21 | 14 - 18 | 7 | 24 | 30 | 1.616.2100.01 | 1.646.2100.01 | 1.666.2100.01 |
| PG 21 | 10 - 16 | 7 | 24 | 30 | 1.616.2100.15 | 1.646.2100.15 | 1.666.2100.15 |
| PG 29 | 20 - 25 | 8 | 29 | 40 | 1.616.2900.01 | 1.646.2900.01 | 1.666.2900.01 |
| PG 29 | 13 - 20 | 8 | 29 | 40 | 1.616.2900.15 | 1.646.2900.15 | 1.666.2900.15 |
| PG 36 | 22 - 32 | 8 | 35 | 50 | 1.616.3600.01 | 1.646.3600.01 | 1.666.3600.01 |
| PG 36 | 20 - 26 | 8 | 35 | 50 | 1.616.3600.15 | 1.646.3600.15 | 1.666.3600.15 |
| PG 42 | 32 - 38 | 9 | 37 | 57 | 1.616.4200.01 | 1.646.4200.01 | 1.666.4200.01 |
| PG 42 | 25 - 31 | 9 | 37 | 57 | 1.616.4200.15 | 1.646.4200.15 | 1.666.4200.15 |
| PG 48 | 37 - 44 | 10 | 38 | 64 | 1.616.4800.01 | 1.646.4800.01 | 1.666.4800.01 |
| PG 48 | 29 - 35 | 10 | 38 | 64 | 1.616.4800.15 | 1.646.4800.15 | 1.666.4800.15 |
| NPT 3/8" | 4 - 8 | 15 | 21 | 17 / 19 | 1.616.3800.70 | 1.646.3800.70 | 1.666.3800.70 |
| NPT 3/8" | 2 - 6 | 15 | 21 | 17 / 19 | 1.616.3800.71 | 1.646.3800.71 | 1.666.3800.71 |
| NPT 1/2" | 6 - 12 | 13 | 24 | 22 / 24 | 1.616.1200.70 | 1.646.1200.70 | 1.666.1200.70 |
| NPT 1/2" | 5 - 9 | 13 | 24 | 22 / 24 | 1.616.1200.71 | 1.646.1200.71 | 1.666.1200.71 |
| NPT 3/4" | 14 - 18 | 13 | 25 | 30 | 1.616.3400.70 | 1.646.3400.70 | 1.666.3400.70 |
| NPT 3/4" | 10 - 16 | 13 | 25 | 30 | 1.616.3400.71 | 1.646.3400.71 | 1.666.3400.71 |
Ďalšie produkty z kategórie
Kovové vývodky radu HSK-M-EMV-Ex

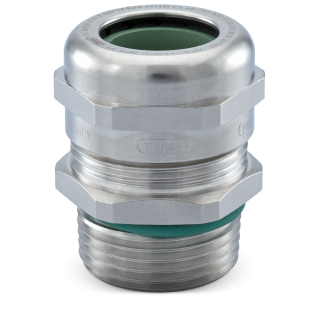

HSK-M-EMV-Ex je kovová káblová prechodka z poniklovanej mosadze pri úrovni ochrany Ex II 2G 1D, Ochrana, tesnosť IP 68 – 10 bar / IP 69K v špecifikovanom rozsahu.
HSK-M-PVDF-EMV-Ex je kovová káblová prechodka z poniklovanej mosadze pri úrovni ochrany Ex II 2G 1D, Ochrana, tesnosť IP 68 – 10 bar / IP 69K v špecifikovanom rozsahu. Sú určené pre chemický priemysel a pre vysoké teploty.
Kovové vývodky radu HSK-M-EMV-D-Ex
HSK-M-EMV-D-Ex je kovová káblová prechodka z poniklovanej mosadze pri úrovni ochrany Ex II 2G 1D, Ochrana, tesnosť IP 68 – 10 bar / IP 69K v špecifikovanom rozsahu.
